Building an Electrocardiograph
Note: This page may be outdated. It is HIGHLY suggested you visit the original site. This page is meant to be used should the original site become unavailable.
The rest of the stuff I don't consider to be part of the cost of the project - mostly because they're reusable and depend on how you plan on building it
Step #1 - Download the Visual Basic Program
It contains the source as well as an executable for the program. Run ecg.exe to make sure everything works with your system.
Step #2 - Make sure the programs work with your system

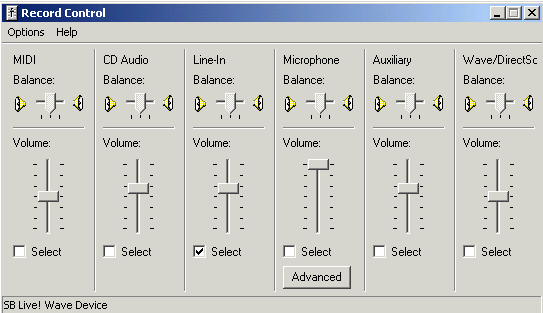

As a general practice, we want to make sure everything works before you go out and spend $4 on parts. So, first, go into the Volume control, select Options -> Properties, and choose recording. You should get something similar to this

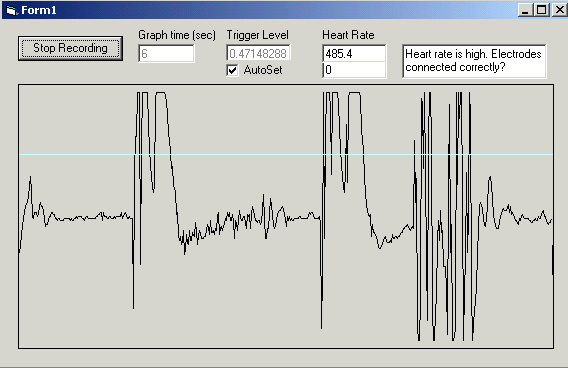

This menu shows what recording device you are selecting. Choose the microphone. Plug in a microphone into the microphone jack on your sound card. Run ecg.exe and click the "Start Recording" button. Speak into the microphone to make sure that it is correctly getting data from the sound card. The output should look similar to this. (Versus just a straight black line)
Step #3 - Build the electrodes

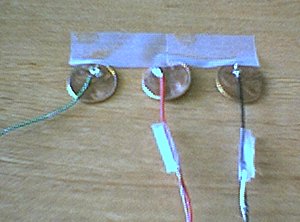

Solder a penny to each wire in the shielded cable. The shield is not soldered to any pennies. Use another wire (or a different cable) to connect the third penny. Allow it all to cool unless you like having Lincon's head burned to your chest. :)

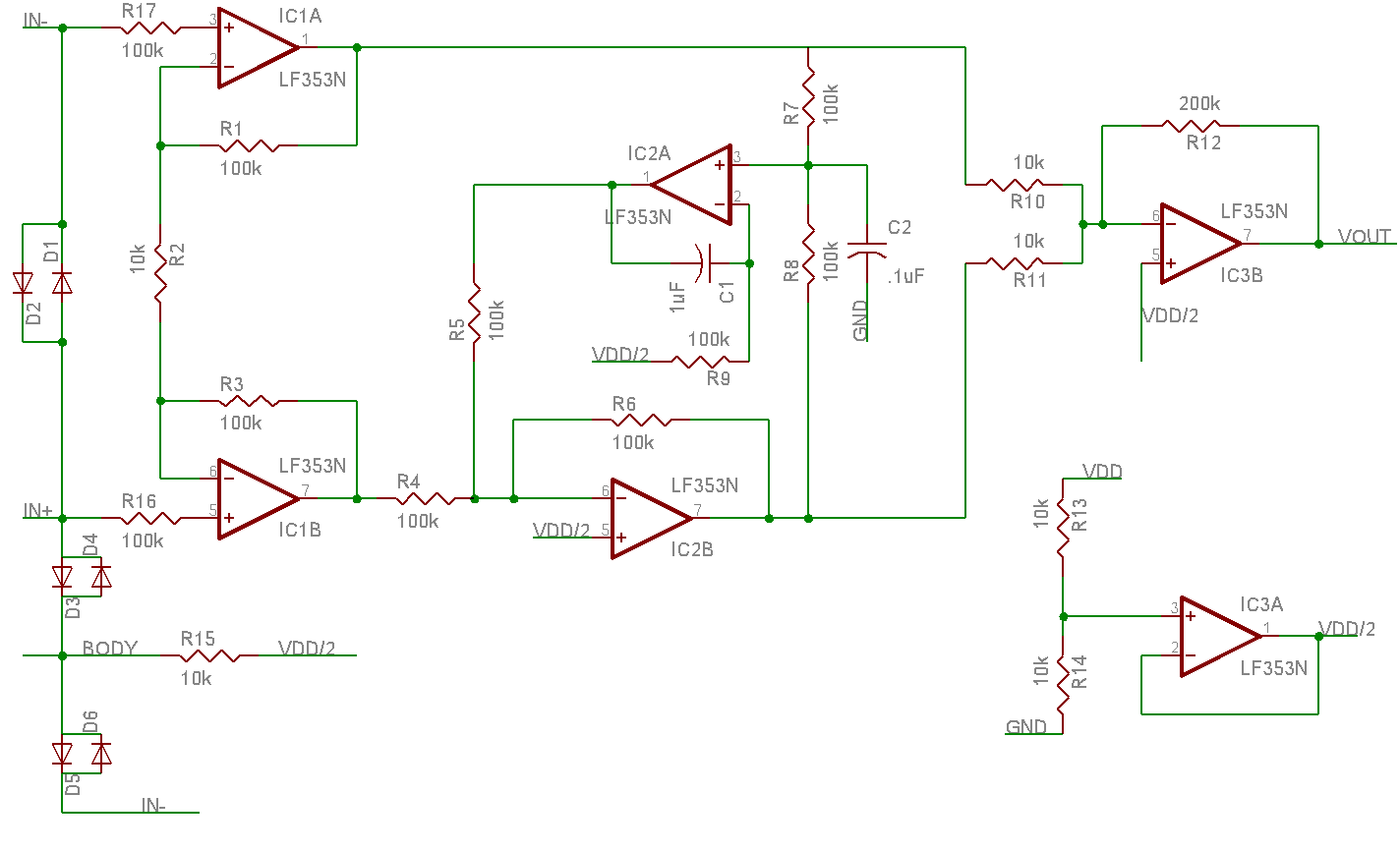

Step #4 - Download the schematic and build the analog circuit
You can use a prototype board, solder the components together, or wirewrap everything. It really doesn't matter. If you don't know how to use a soldering iron, proto board, etc, you may want to ask a friend.
VDD is the + terminal of the battery/power supply
GND is the - terminal
IN+ and IN- go to the electrodes that go to your chest
BODY can go basically anywhere on your body (arm, leg, another point on the chest)
VDD/2 is a common connection to every node with that name.
The +VDD supply node on the op-amps (LF353) go to the + terminal of the battery (sometimes labeled V+)
The -VDD supply node goes to the - terminal (sometimes labeled V-)
VOUT is the connection from the analog circuit to the input of the sound card. Connect VOUT to the center pin of the phone plug. Connect the shielding of the phone plug to GND of the analog circuit.
Step #5 - Apply lotion to the non-soldered side of all of the pennies
Step #6 - Tape the shielded electrode wires to your chest, the other electrode to your arm (or somewhere else)
The connection to IN+ and IN- do not matter right now. If the waveform is upside down, we'll just switch the leads.

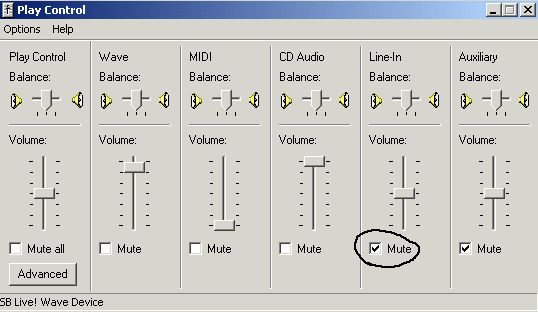

Step #7 - Disable the output of the CD-in or the Line-in device
We want to do this so that noise from the Line-In doesn't come out of the speakers. It's kind of annoying to hear a lot of noise while we're making connections or debug something
Step #8 - Plug the phone plug into your computer's CD-in or Line-in
Step #9 - Set the recording device to Line or CD (Similar to Step #2)
Step #10 - Run the ecg.exe program & click on "Start Recording"
You should be able to see your ECG now!
The blue line helps keep track of what part of the graph is being updated. It also signifies the heart rate trigger. When the signal crosses the line, it calculates the time since the last trigger, then calculates what the resulting heart rate is. The trigger level will change depending on the amplitude of the signal input.
To the right of "Start Recording" is the graph interval. You can set this number prior to clicking "Start Recording." It tells the program how long the graph should draw before overlapping. For example, a setting of 5 means that you can view 5 seconds of ECG data before it starts drawing from the beginning.
To the right of the graph time is the trigger level setting. Normally, you should leave it to auto-trigger. However, if you want to manually set the trigger level, you can.
Next to that is the Heart Rate display. It displays the calculated heart rate in beats per minute. Below the heart rate display is just a debugging tool that shows the ECG is working.
That's the basics of the program. If you have any questions, please feel free to contact me. Have fun.
